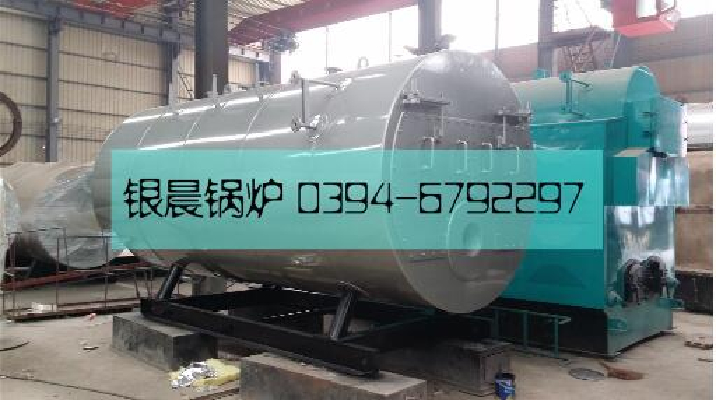

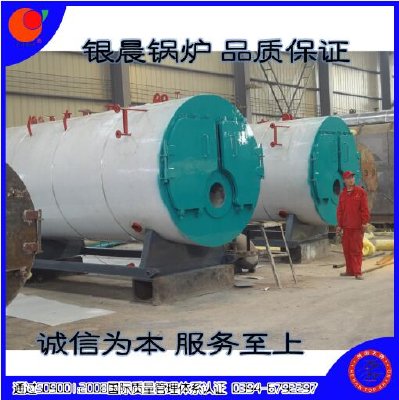

Being type oil burning boiler combustion for horizontal fast three return fire tube steam boiler. The bias furnace wet back structure, high temperature flue gas flushing second and third order return pipe, and then by the smoke chamber through the chimney into the atmosphere. The boiler with flowing smoke box cover, before and after the boiler inspection then. Well functioning burner boiler configuration technology, the automatic combustion proportional control, automatic feed water adjust, start-stop, improve predecessors technology such as fully automatic operation, and has high and low water level alarm and low water level, high steam pressure, remove from heat and other automatic protection function. The type boiler has a compact structure, safe and reliable, simple and convenient manipulation, rapid installation, low pollution, low noise, high efficiency, etc.

Main features:
1, gas steam boiler integral structure reasonable, compact, belongs to the boiler island, in line with the fast loading factory premises. This product factory is composed of three branches; Boiler host, chimney and pipeline system, in which the host and the chimney department has been made in our factory finished, the host pipe valves, instrument has form a complete set of random loading, shipped to the site will be the host and the chimney can be assembled. The scene test. Just by turning on the air supply, power supply, the water greatly shorten installation period, and can guarantee the quality of the product.
2 boiler design function improve predecessors. The host belongs to the whole structure of the boiler, burner assembly before smoke box lid, the main heating surface layout and combustor sector. With reasonable, compact structure, low steel consumption, furnace with offset waveform furnace, thermal insulation layer to choose new lightweight heat insulation material, the outer packing USES color sheet, packing for the rectangle shape, make the function of the boiler, the weight, the size of the structure, appearance modelling has significant capacity products compare with the need of improve the predecessors and the look and feel. The boiler feed water equipment in the boiler on the right side of the base and the host, not the other do.
3, the water cycle of simple and reasonable pressure retaining structure, in the guarantee quality, under the situation of safe operation.
